How to use GM MDI with Toyota Techstream?

Here’s the tutorial on how to use GM MDI (Multiple Diagnostic Interface) with Toyota Techstream software. This is not necessary because the MINI VCI passthru cable is very cheap for techstream.  The guide is for those who are interested in finding a good mvci alternative.

Disclaimer: You are at your risk.  We are not hold the responsibility for the damage.

Instruction:

Techstream has only 2 default pass-thru device selection options: TIS Techstream VIM and Xhorse MVCI

So first step we need to add MDI to the VIM selection.

Connect GM MDI interface with vehicle (here we use Windows 7 machine) via USB cable

MDI supports WiFi connection as well, but obviously we need to use USB connection here

Go to MDI software folder and find MDI Manager driver

Install MDI Manager driver setup

Install the GM MDI Software InstallShield Wizard

Configure USB

Power on the MDI, wait for the “beep”. Ten connect it to the PC with the USB  cable(already connected it).

Press the Configure button when ready. Configuration may take several minutes.

Finish installing MDI driver.

Open GM MDI Manager on desktop

MDI is not yet connected

Open Techstream software (here use Ver. 13)

Now the MDI passthru is added to the VIM selection

Select MDI interface and press OK

Accept Windows Security Private networks and allow access

MDI not connected (require configuration)

Open GM MDI Manager on desktop again

System prompts no MDIs detected

It require to recover MDI, press Recover button

If it warns MDI software is out of date. Run Start Update

Do not unplug the MDI from the PC or remove power from the MDI during the update process.

The MDI will automatically restart when update completed

Now the MDI interface is connected

Run Techstream again

Choose MDI interface

Initialize USB communication and connecting

Check the indicators on MDI adapter

Communication is built

Select vehicle model and start diagnose Toyota.

Done.

www.obdii365.com

See also:

Cloned GM MDI possible work with Ford IDS software?

GM MDI Interface Not Connecting: How to solve?

http://blog.obdii365.com/2019/11/25/possible-to-use-toyota-techstream-with-gm-mdi-interface/

Program Smart Keys to Lexus, Toyota and Scion by Techstream

This is about how to program a new smart key & remote fob for Toyota, Lexus, and Scion.

Background:

A few years ago I bought my used 2008 Toyota Highlander Limited and it came with just one “Smart Key” to start the engine. Initially, I wanted to get a second key for a backup, but few hundred dollars price tag from the dealer made me hold off on that idea. A few months later, was told that it is possible to program any Toyota, Scion or Lexus smart key using a special cable and software, so I started my online search. After some struggling and few failed attempts, I finally figured out the way to do it. It still cost me quite a lot of $$$, but nevertheless, I still saved about $100 compared to the dealer’s price.

Disclosures

The following smart key programming instructions are not guaranteed to work. Performing this procedure can potentially damage your vehicle, void your vehicle warranty, and cause expensive repair costs. Do it at your own risk.

What you will need + How to program keys:

1. Windows-based PC laptop computer
2. Diagnostic software Techstream and cable MINI VCI (USB to OBD2)
3. New Toyota, Lexus or Scion Smart Key fob with unlocked smart chip transmitter
   (these are eBay affiliated links)
4. TechStream “Professional” subscription (https://techinfo.snapon.com/TIS/Register.aspx).

Step 1

In order to program Toyota, Lexus or Scion smart key, you will need to get the Techstream software and MINI-VCI cable. You will need to install the software and the driver on your Windows XP, 7, 8 or 10 computer or tablet. Installation instructions are usually provided with the purchase of the cable.

Step 2

Next, you’ll need to purchase a new original OEM unlocked Smart Key fob. You can also buy a used Smart Key if you want to save money, just make sure you are buying unlocked one. Otherwise, you will have to find someone to unlock it for you, like your local Locksmith or hardware store (though very often they will refuse to do that and offer to buy their keys instead). Search for smart keys compatible with specific make, year, and model of your Toyota, Lexus or Scion.

Step 3

Install cable drivers and diagnostic software on Windows PC based computer. Installation instructions are usually included with the purchase of software and the cable.

Step 4

Programming Instructions:

• Connect your computer to OBD2 port under the dashboard of your car using the included cable

• Launch TechStream software and click on “Connect to Vehicle”
• Select your car make, model, year, engine
• Choose “With Smart Key” option
• *If your car doesn’t have smart keyfob, choose “Without SmartKey”. Programming instructions will be different.
• Select “Smart Key” system
• Click on “Utility” button
• Select “Smart Code Registration”

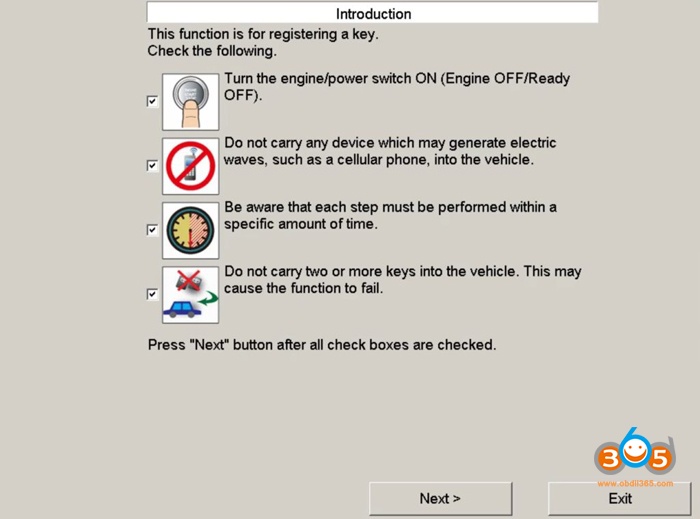

• Press the Start button in your car once to turn the engine/power ON
• Remove any devices that may cause electromagnetic interference, such as cell phones
• Be aware that you will need to perform each step within the specified amount of time
• Only carry one smart key into the vehicle at a time
• Check four checkboxes and click “Next”

Notice the number of available spaces for a new key. If the number of available spaces is 0, then you need to go back to “Smart Code Reset” utility first

Place already registered smart key into the car, and remove the new unregistered smart key from the car, and click “Next”
(I rolled down the window and placed the unregistered key on the roof of my car, and it worked just fine)

Press “Pre-Start Check” button and review registration process

How to Register A New Smart Key:

• Press “Start” button to start registering process
• Within 30 seconds touch engine start switch/button with your registered smart key. You will hear one beep

• Within 30 seconds remove the registered key from the vehicle, place the new unregistered key into the vehicle, and touch the engine start switch/button with the unregistered smart key. You will hear one beep
• Place the key on the passenger seat. New smart key registration is complete!

• Test new smart key to verify it is working
• You can press “Next” to register more keys, or “Exit” to finish.

www.obdii365.com

http://blog.obdii365.com/2019/11/12/techstream-programs-smart-keys-to-toyota/

Techstream Program Toyota prius New or Used Smart Key

Got my Mini VCI cable today
Had an extra Remote for my Prius (Smartkey) and figured let’s put the techstream to test…

watched the video https://www.youtube.com/watch?v=8SivdN83i4E

and it was very similar
just chose your car and chose with smartkey and connect.

in techstream you have to go to the BODY tab
then SMartKey
a new tab opens with SMARTKEY LIVE on top
you can erase your old keys and end up with 1 and you can add new codes

it is very simple to follow

====

I was not successful as I had a 3 fold problem

1) you need to have the car on ACC .. meaning press the GO button 2 times without touching the brake for the techstream to do its thing … I left the brake lights on and I was sitting in the car trying to figure this out so my car battery Died!

2) it took me a while because Id id not realize that the remote battery is dead.. so I went and found the battery installed it and come back.

3) the laptop battery died on me now

anyhow once the car battery died I was done playing in the cold and dark outside with no laptop battery …
so lessons learned
1- charge your laptop fully,
2) make sure your remote battery is good
3) do not leave any light on when your car is on ACC and do not take your time … do your readings before turning on the car

I had 2 remotes installed and I was able to erase and leave only one . so techstream works..
the programming of the additional Key did not take.. not sure if the battery I put in was weak or because the car battery was dying by then..

Finally, I figured it out
was able to programming smart key used or new

I am here to put this to rest and collect all the info in one place, since I saw this question all over with no solid answer

Thread:

SMART KEY Remote FOB Programming New or Used Toyota Highlander / Prius

You need:
– Techstream software
– MINI VCI cable or compatible cable (Mongoose MFC)
– Compatible remote

– Used Remotes need a PASS CODE from TIS (can get it from online services or an authorized locksmith/dealer with access to TIS, or someone with the Keygen)

———

– Techstream software (you get it with the cable or you can find it around the net)

– Cable: just go to http://www.obdii365.com/wholesale/mini-vci-for-toyota-with-toyota-tis.html or search for techstream cable on Google

– The drivers for the cable – works well on XP but for win 64bit you need to manually install x64 drivers.

-The remote with working batteries of course. needs to have the Same FCC ID and the same transmitter ID which is printed on the inside on the circuit board.
Mine for 2008 hybrid highlander with hatchback power
FCC ID HYQ14AAB
Toyota part# 8990448110
transmitter ID: 271451-0140

If your remote is virgin and has never been programmed you are good to go, if not perhaps if you bought a used one: you need to do smartkey reset via techstream and it will ask you for a passcode.
it gives you a 96 character code + vin # of the car you can get the passcode using those 2 on some website (20-30$) or from a dealer/locksmith

If the smartkey is brand new you can just use techstream and program it

turn on the car like you are going to drive it but leave it in park, this way your battery will not drain while you work, make sure your laptop is fully charged.
Install the drivers for the cable and install techstream make sure it runs
connect the cable to obdII socket and your USB and in techstream connect to the car
make sure that is your car in the menu and chose WITH SMART KEY option.

in techstream: body electrical> smart key> utility>

New remote> key code registration and follow the prompt very easy.

Used remote> Smart key reset with the drivers door open for the whole duration of programing and the car on fully so the battery does not die. Get the SEED code , do not close the techstream till you get the passcode , if you close it the smart key reset code will change.

get the passcode and put it in .. wait 16 minutes .. the program is slow do not freak out if the screen disappears just put your own timer for 16 min.
then register the remote.. using Register Key CLASSIC.. chose 3rd option ” I have already reset the smart key”
program your used key first
then your original key and you are done.

FOR PEOPLE WHO NEED THE TIS PASSCODE: it goes for around 30$ online or you can buy the program for 400$ from china to generate it. the program comes on a USB dongle and only works from the dongle, I have not found the hack for that.
If you have a dealer friend or locksmith friend they should be able to hook you up.
I might be able to hook you up with SEED code for 14.50$ from a local locksmith friend of mine. send me a pm if you need it.

I have the Passcode calculator program but it does not work without the USB dongle if anyone can crack it and extract the algorithm or make it work without the dongle we can all get our passcodes for free

========

UPDATE: I was doing a family members 2013 prius
stay with the older version of techstream as seed code.

http://blog.obdii365.com/2019/11/04/prius-new-or-used-smart-key-programming-instruction/

Install Techstream V12 VMware for VXDIAG Toyota to read AHC ECU

Getting Techstream up and running can be a bit of a pain. Hopefully this helps someone get started quickly.

Step 1: Purchase an OBD-II interface.

Option 1: MINI VCI cable
– http://www.obdii365.com/wholesale/mini-vci-for-toyota-with-toyota-tis.html (under $20)

Option 2:

– VXDIAG VCX NANO Toyota

http://www.obdii365.com/wholesale/vxdiag-vcx-nano-for-toyota-tis-techstream-compatible-with-sae-j2534.html (not only works for diagnosis and customization but also ecu programming)

Difference of the two:

With MINI VCI cable, for the most part they work. On some cars they will not be able to connect or cause error codes.

The VXDIAG VCX Nano uses it’s own firmware. It connects and reads codes much quicker than a Mini VCI cable.

Step 2: Download VirtualBox for Your Operating System:
– Windows: http://download.virtualbox.org/virtualbox/5.2.4/VirtualBox-5.2.4-119785-Win.exe
– MacOS: http://download.virtualbox.org/virtualbox/5.2.4/VirtualBox-5.2.4-119785-OSX.dmg

Step 3: Install VirtualBox Software You Just Downloaded
– Windows: Double-Click downloaded file
– MacOS: Double-Click downloaded file, run installer

Step 4: Download TechStream Image:
– MEGA link: https://mega.nz/#!fsEizJyC!aH_2a1hQnX6LpicDS1Bq-gEKVEU57cotd3_QesN2_M0(TechStream 12.20.024-v2 .ova)

Step 5: Double-Click downloaded file.

Connect & Enjoy.

Operating system tips and guides:

Vista, Win7, 8 and 10 do actually have 32bit versions available

They are often preinstalled on cheaper mini laptops and the like.
The retail versions of the OS often gave you the option to install either the 32bit or the 64bit versions.

The drivers for the cheaper listed cable says it only supports XP and 7 however.
Its no doubt possible to get it working in later OSs though, but it could be painful.
If in doubt though, Virtualbox should do the trick.

Reasons to package everything into a virtual machine image:
– Security: Everyone’s essentially running cracked versions of TechStream from an unknown source. There’s a non-zero chance of ransomware slipping into one version. Running the software in an isolated virtual machine is a layer of security here.

– Portability: The software only runs on Windows. Using a virtual machine image allows the software to run on virtually any computer.

– Access: The software ships on CDs (sometimes mini-disks). Lots of laptops don’t have CD drives, and any ‘slot-type’ drive won’t accept mini-disks.

– Ease: Drivers for the two popular cables are pre-installed with a recent version of TechStream. It’s basically just download and run.

That said, if you are running a Windows machine and can follow the instructions included by the seller, there’s no reason you *have* to use a virtual machine.

Techstream VMware questions and answers:

I noticed with my ’98 LC that I don’t have a ton of settings that I can adjust, is that what others are seeing?
For example, I’d like to adjust my wiper delay and keyfob unlock settings, but it looks like they’re not available. Is there a list of accessible settings for each year of vehicle?

I don’t have very many settings in my ’02 LX.

I have a Mac. Have you tried that interface with Apple?

I successfully run this setup on a Mac with the VXDIAG VCX NANO Toyota interface

Working with AHC pressures?

I am able to read the AHC ECU (And All ECUs for that matter) using the VXDIAG OBD-II interface. I also purchased a Mini-VCI cable and was unable to communicate with the AHC ECU, but had no issue reading the other ECUs. Again, possible I just had a bad Mini-VCI cable.
In the linked image above, drivers for both interfaces are pre-installed.

Anyone have any experience with the wired vs wireless OBD interface? I’m wondering if its worth an additional 50 dollars for the VXDiag version.

I’m not sure if you’re referring to the VXDiag model I linked to in the OP. If you are, it isn’t wireless. I’d probably just purchase the Mini VCI cable first, and if that works for you, perfect. If it doesn’t, return it within 30 days and buy the VXDiag if necessary. It’s the techstream software that’s doing the heavy lifting, so theoretically (if they are both good cables), each will give you identical functionality.
I only purchased the VXDiag because I was having issues reading AHC trouble codes, and those two interfaces use different drivers.

What exactly does Techstream allow us to see/modify?

For LX, and LC owners with AHC, Techstream allow us to see AHC pressures + trouble codes. Even without AHC it allows everything from basic ‘check engine’ light diagnosis, key programming (May only be 04+?), and adjustment of some settings like ‘roll down my windows when I unlock the car’ — the adjustable preferences differ with different model years. Not too many on my ’02 LX, but I believe the folks with newer LC/LXs have more options.

Does Techstream get into ABS codes?

YES, it does.
